PUF Panels Explained: What Are They and Where Are PUF Panels Used?
Innovation and efficiency are essential in today’s fast-paced construction and industrial sectors. Among the many materials revolutionizing the building industry, PUF Panels stand out for their thermal insulation, energy efficiency, and versatility. Whether it’s for residential cold storage, industrial warehouses, prefabricated buildings, or commercial partitions, PUF panels have become the go-to solution.
What is a PUF Panel?
PUF stands for Polyurethane Foam, which is the core material used inside the panel. A PUF panel is a sandwich-structured composite material, where polyurethane foam is sandwiched between two outer metal sheets—usually made of galvanized steel, aluminum, or stainless steel.
Lightweight, high thermal insulation, fire resistance, and durability are the characteristics that PUF panels are known for. These panels are prefabricated and can be quickly installed on-site, reducing construction time and labor costs.

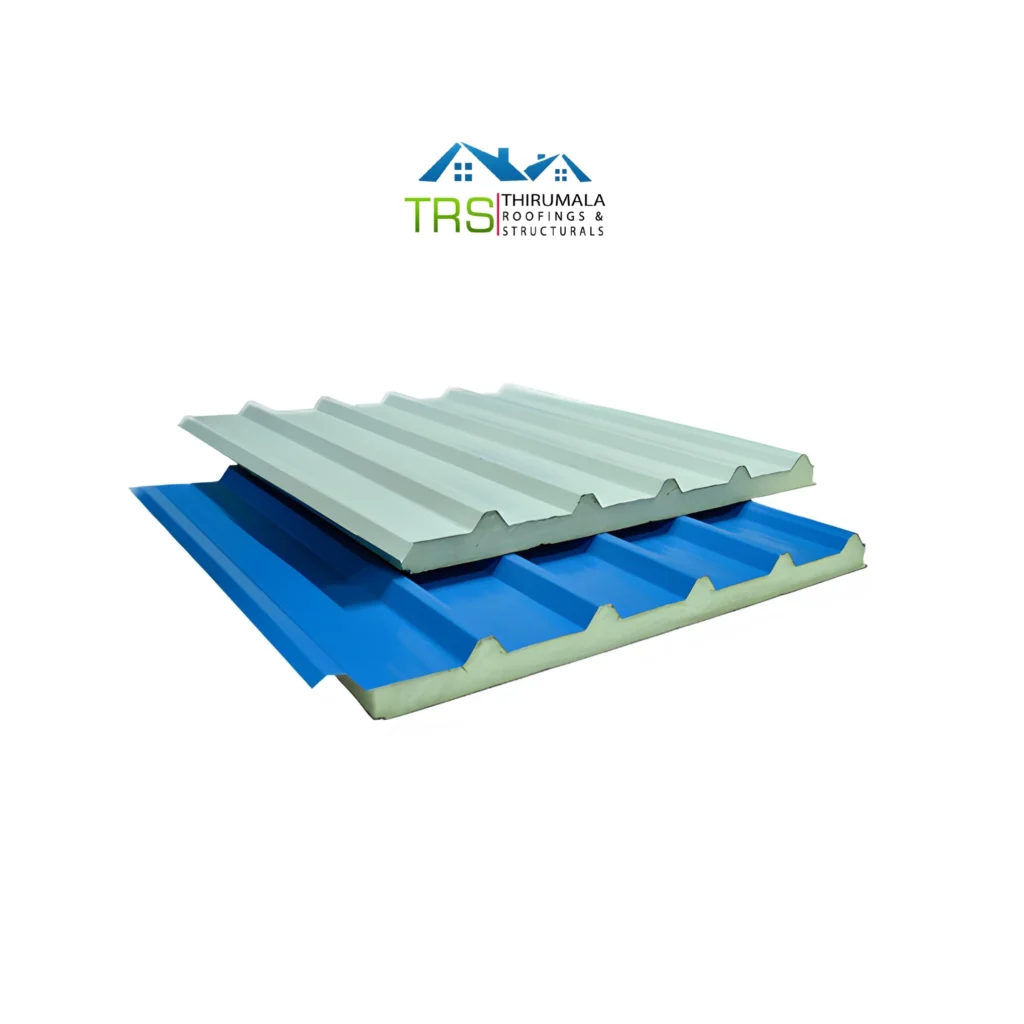

Structure of a PUF Panel
A typical PUF panel comprises:
- Outer Sheet (Metallic Skin): Often made of GI (Galvanized Iron) or aluminum with a pre-coated finish.
- Insulating Core: The core is constructed with polyurethane foam (PUF).
- Inner Sheet (Metallic Skin): Similar material as the outer sheet for uniform strength and protection.
The panel is strengthened, insulated, and weatherproofed thanks to the sandwich structure.
How is a PUF Panel Made?
A continuous production process with high-precision equipment is necessary to create a high-quality PUF panel. Here’s a step-by-step overview of how PUF panels are manufactured:
Raw Material Preparation
The main ingredients required are:
- Polyol and Isocyanate: These are the chemical components used to create the polyurethane foam.
- Metal Sheets: Typically GI or aluminum coils, which are pre-treated and pre-coated.
- Catalysts and Blowing Agents: To ensure proper chemical reaction and foam expansion.
Roll Forming of Metal Sheets
The metal sheets are passed through a roll forming machine to get the desired shape and profile. The PUF panel’s outer and inner layers are made up of these sheets.
This stage may include:
- Embossing or profiling for aesthetics and additional rigidity.
- Surface treatment like degreasing, chromating, and primer coating to ensure strong adhesion.
Injection of Polyurethane Foam
The core manufacturing process involves injecting the PU foam between the metal sheets. A high-pressure foaming machine is utilized to achieve this objective.
- To mix polyol and isocyanate, specific ratios are utilized.
- The mixture is injected at high pressure between the two metal sheets.
- The foam expands and fills the space between the sheets due to a chemical reaction that takes place.
This results in a rigid, high-density core typically around 40 kg/m³ density, providing superior insulation.
Panel Pressing and Bonding
Once the foam is injected, the panel is moved through a double-belt press or a continuous laminator. This step ensures:
- Uniform bonding between foam and metal sheets.
- Consistent thickness and surface finish.
- Elimination of air gaps or uneven foam expansion.
The foam starts curing as it passes through the heating zones of the laminator.
Cutting and Finishing
The panel will have reached the desired length and the foam has cured when it is ready:
- It is cut to size using automated cutting systems.
- Edge profiling, tongue and groove interlocking, or cam-lock systems are added for easy assembly.
- Protective plastic film is applied to prevent scratches during transportation and installation.
Advantages of PUF Panels
PUF panels can be used for a variety of purposes in different sectors.
1. Superior Thermal Insulation
The closed-cell polyurethane foam provides excellent thermal resistance, making it ideal for temperature-sensitive environments like cold storage and refrigerated rooms.
2. Energy Efficiency
- Reduced heat transfer means less energy is required to maintain temperatures, leading to significant cost savings on electricity bills.
3. Lightweight Yet Strong
Despite their low weight, PUF panels are extremely rigid and durable, allowing for faster installation and structural stability.
4. Quick Installation
- Since they are prefabricated, PUF panels can be installed quickly, reducing project timelines by up to 50%.
5. Fire and Water Resistant
PUF panels have the ability to self-extinguish, resist moisture, and have outstanding fire-resistive properties.
6. Sound Insulation
Ideal for use in recording studios, theaters, or factories, where noise reduction is essential.
Applications of PUF Panels
PUF panels can be utilized in different industries and building types due to their adaptability.
Cold Storage Rooms
Prefabricated Modular Buildings
Clean Rooms and Laboratories
Commercial Warehouses
Server Rooms and Data Centers
Portable Cabins and Site Offices
Roof and Wall Cladding
Refrigerated Vehicles
Industrial Sheds and Workshops
Why Are PUF Panels Ideal for South Indian Climates?
South India is known for its tropical climate, high humidity, and intense heat. Traditional building materials struggle to regulate internal temperatures, leading to higher cooling costs and discomfort.
PUF panels offer the perfect solution:
- Heat Resistance: Reduces indoor temperature significantly, especially under direct sunlight.
- Moisture Control: Water ingress and dampness can be prevented by PUF panels using closed-cell foam.
- Corrosion Resistance: Metal coatings used are resistant to corrosion, ideal for coastal and humid areas.
- Eco-Friendly: Lower energy consumption means fewer emissions and a reduced carbon footprint.
Cost-Effectiveness of PUF Panels
PUF panels can offer long-term savings even if their initial cost is high.
- Lower energy costs
- Minimal maintenance
- Reduced construction labor
- Faster project turnaround
This makes them a smart investment for businesses and property developers looking for value and sustainability.
Cost-Effectiveness of PUF Panels
| Feature | PUF Panel | EPS Panel | Rockwool Panel |
|---|---|---|---|
|
Insulation Efficiency
|
Excellent
|
Good
|
Moderate
|
|
Fire Resistance
|
Good |
Poor
|
Excellent
|
|
Weight
|
Lightweight |
Very Light
|
Heavy |
|
Sound Insulation
|
Moderate |
Low |
Excellent |
|
Cost
|
Moderate
|
Low |
High |
PUF panels strike a balance between performance and price, making them ideal for most general and industrial uses.
Conclusion
Modern construction standards are being redefined by PUF panels, which have unparalleled thermal insulation, durability, and quick installation capabilities. Building a cold storage unit, a prefabricated home, or an industrial warehouse can be achieved through the use of PUF panels, which are both cost-effective and energy-efficient.
Understanding what PUF panels are and how they are made helps stakeholders make informed decisions that contribute to sustainable and efficient building practices.
